Nitrate
- Reference Designator
- GA01SUMO-RID16-07-NUTNRB000
- Review Status
- Review Complete
- Note
- Data generally look suspect for all deployments because of the prevalence of negative values - did not calculate final data ranges.
- Depth
- 12m
- Class
- NUTNR (Nitrate)
- Make / Model
- Satlantic / ISUS
Dataset Reviews Last processed: 7/22/19, 8:15 PM
| Dep. | Preferred Method | Stream | DD | FD | SG | EG | Gaps | GD | TS | Rate (s) | Pressure Comp. | Time Order | Valid Data | Missing Data | Data Comp. | Missing Coords. | Review |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | recovered_inst | 257 | 257 | 0 | 0 | 0 | 0 | 41,770 | 1 | 12 / | 1 | 2 | 3 | Complete | |||
| 2 | recovered_inst | 361 | 361 | 0 | 0 | 0 | 0 | 94,235 | 1 | 12 / | 4 | 3 | Complete | ||||
| 3 | recovered_host | 445 | 238 | 0 | 186 | 6 | 23 | 59,539 | 1 | 12 / | 3 | Complete |
Test Notes
- fail: data found in another stream (gaps: [7209, 7239] days: [7211, 7241])
- fail: check ['Nitrate Concentration - Temp and Sal Corrected', 'Dissolved Nitrate Concentration', 'Nitrate Concentration - Temp and Sal Corrected', 'Dissolved Nitrate Concentration']
- missing: ['pressure']
- no comparison: timestamps do not match
Data Coverage
| Deployment: | 1 | 2 | 3 |
|---|---|---|---|
| 53% | |||
| 100% | 100% |
Lat/Lon Differences (km)
| Deployment: | 1 | 2 | 3 |
|---|---|---|---|
| 1 | 0.00 | ||
| 2 | 10.69 | 0.00 | |
| 3 | 1.25 | 11.91 | 0.00 |
System Annotations Show
| Metadata | Start Date | End Date | Comment |
|---|---|---|---|
|
GA01SUMO |
3/15/15, 5:25 PM | 11/26/15, 5:08 AM |
Deployment 1: Buoy log files showed that seawater was first detected inside the buoy well on 3/26/2015. Both leak detectors showed increasing presence of water over the period of deployment. Upon recovery of the mooring, no external damage was visible and the buoy did not appear to be floating lower than normal. Id: 653 By: lgarzio |
|
GA01SUMO-RID16-07-NUTNRB000 |
10/26/16, 9:47 PM | 7/11/17, 11:00 PM |
Deployment 3: Recovered_instrument data not available - unable to communicate with the instrument after recovery. Id: 618 By: lgarzio |
|
GA01SUMO-RID16-07-NUTNRB000 |
10/26/16, 9:47 PM | 7/11/17, 11:00 PM |
Deployment 3: Telemetered files started to contain bad characters around 6/8/2017, and most data were bad as of 6/19/2017. Upon recovery, instrument bulkheads were heavily corroded and bent. Id: 387 By: lgarzio |
Review Notes
| Metadata | Start Date | End Date | Comment |
|---|---|---|---|
|
GA01SUMO-RID16-07-NUTNRB000 |
There is no pressure variable in the .nc files. This should be a coordinate. By Lori Garzio, on 7/23/19 |
||
|
GA01SUMO-RID16-07-NUTNRB000 |
Data generally look suspect for all deployments of this instrument (the ISUS model) because of the prevalence of negative values. The dataset should be annotated if there is a known issue with this instrument to inform users if all or some data should be considered suspect. By Lori Garzio, on 7/23/19 |
||
|
GA01SUMO-RID16-07-NUTNRB000 Deployment: 1 |
3/15/15, 9:25 PM | 11/26/15, 10:08 AM |
Suspect data - 97% of the values for nitrate_concentration are outside of global ranges (mostly negative). By Lori Garzio, on 7/23/19  |
|
GA01SUMO-RID16-07-NUTNRB000 Deployment: 2 |
11/14/15, 9:06 PM | 11/8/16, 10:10 AM |
Suspect data - 100% of the values for salinity_corrected_nitrate and nitrate_concentration are outside of global ranges (too high). By Lori Garzio, on 7/23/19  |
|

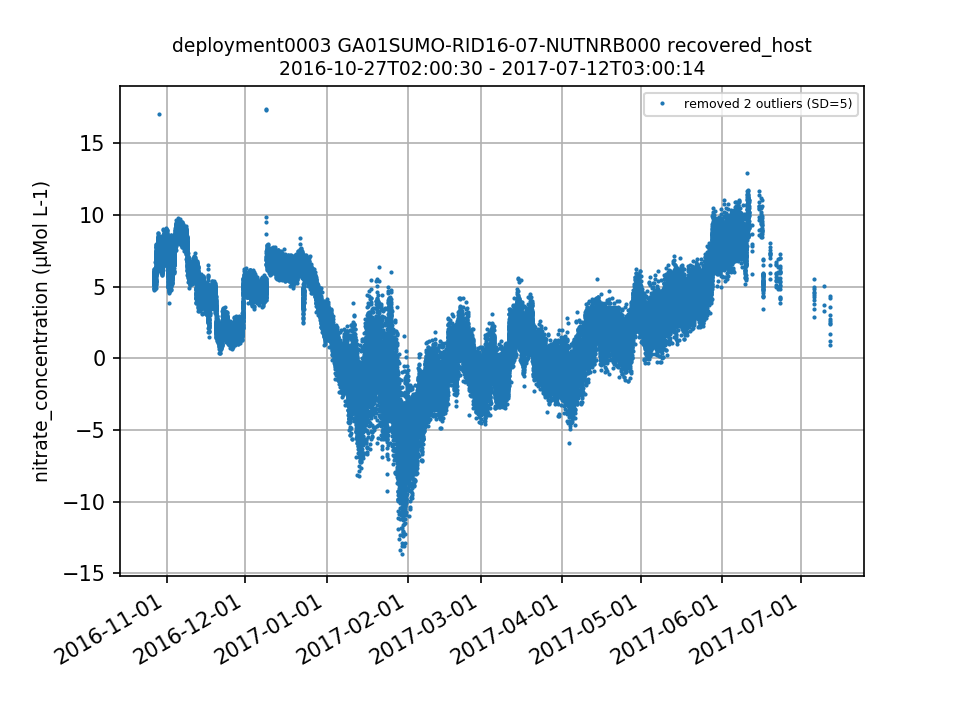

GA01SUMO-RID16-07-NUTNRB000 Deployment: 3 |
10/27/16, 1:47 AM | 1/14/18, 10:24 AM |
Suspect data - 71% and 30% of the values for salinity_corrected_nitrate and nitrate_concentration are outside of global ranges By Lori Garzio, on 7/23/19  |
