3-Wavelength Fluorometer

Reference Designator
CP02PMCI-WFP01-04-FLORTK000
Start Depth
15
End Depth
104
Location
Wire Following Profiler Body
Current Status
Review Complete
Class
FLORT (3-Wavelength Fluorometer)
Series
FLORT-K
Science Discipline
Biological
Make
WET Labs
Model
ECO Triplet
M2M Example
https://ooinet.oceanobservatories.org/api/m2m/12576/sensor/inv/CP02PMCI/WFP01/04-FLORTK000/metadata
Method Data Stream Content Type
recovered_wfp flort_sample Data Products Report M2M Stats Science
telemetered flort_sample Data Products Report M2M Stats Science
Deployment Cruise Start Date Stop Date Mooring Asset Node Asset Sensor Asset Latitude Longitude Deployment Depth Water Depth
1 Review KN217 04/16/2014 10/10/2014 CGMCP-02PMCI-00001 CGVEH-CWFPCP-10302 CGINS-FLORTK-01119 40.2267 -70.8886 104 127
2 Review KN222 10/10/2014 12/15/2014 CGMCP-02PMCI-00002 CGVEH-CWFPCP-99102 CGINS-FLORTK-01031 40.2265 -70.878 104 127
3 Review AT27 05/01/2015 10/15/2015 CGMCP-02PMCI-00003 CGVEH-CWFPCP-10302 CGINS-FLORTK-01119 40.2267 -70.8888 105 128
4 Review AT31 10/15/2015 05/20/2016 CGMCP-02PMCI-00004 CGVEH-CWFPCP-10301 CGINS-FLORTK-01117 40.2267 -70.8779 104 127
5 Review AR4 05/21/2016 05/30/2016 CGMCP-02PMCI-00005 CGVEH-CWFPCP-99102 CGINS-FLORTK-01031 40.2266 -70.889 105 128
6 Review AR7-01 07/01/2016 10/02/2016 CGMCP-02PMCI-00006 CGVEH-CWFPCP-93601 CGINS-FLORTK-00969 40.2269 -70.8894 104 127
7 Review AR8 10/03/2016 06/17/2017 CGMCP-02PMCI-00007 CGVEH-CWFPCP-99102 CGINS-FLORTK-01031 40.2267 -70.8782 103 126
8 Review AR18 06/16/2017 11/07/2017 CGMCP-02PMCI-00008 CGVEH-CWFPCP-10302 CGINS-FLORTK-01119 40.227 -70.8889 104 127
9 Review AR24 11/07/2017 04/11/2018 CGMCP-02PMCI-00009 CGVEH-CWFPCP-99101 CGINS-FLORTK-01029 40.2266 -70.8782 102 125
10 Review AR28 04/11/2018 11/05/2018 CGMCP-02PMCI-00010 CGVEH-CWFPCP-10302 CGINS-FLORTK-01119 40.2265 -70.8889 104 127
11 Review AR31 11/05/2018 04/18/2019 CGMCP-02PMCI-00011 CGVEH-CWFPCP-99101 CGINS-FLORTK-01029 40.2267 -70.8783 103 126
12 Review AR34 04/17/2019 10/07/2019 CGMCP-02PMCI-00012 CGVEH-CWFPCP-10302 CGINS-FLORTK-01119 40.2267 -70.8886 103 126
13 Review AR39 10/07/2019 06/12/2020 CGMCP-02PMCI-00013 CGVEH-CWFPCP-99101 CGINS-FLORTK-01029 40.227 -70.8779 103 126
14 Review AR44 06/12/2020 CGMCP-02PMCI-00014 CGVEH-CWFPCP-10302 CGINS-FLORTK-01119 40.2267 -70.889 104 127
Metadata Start Date End Date Comment
CP02PMCI-WFP01-04-FLORTK000

The pressure coordinate (pressure_depth) is an array of all fill values. This variable should contain valid pressure data. There is another variable in the files called in_ctd_pressure that contains what appears to be valid pressure data. This is the case for every FLORTK on every WFP. https://opendap.oceanobservatories.org/thredds/dodsC/ooi/lgarzio@marine.rutgers.edu/20181212T200946-CP02PMCI-WFP01-04-FLORTK000-recovered_wfp-flort_sample/deployment0009_CP02PMCI-WFP01-04-FLORTK000-recovered_wfp-flort_sample_20171107T230203-20180411T133621.nc.ascii?pressure_depth[0:1:1000],int_ctd_pressure[0:1:1000]

By Lori Garzio, on 3/12/19

CP02PMCI-WFP01-04-FLORTK000

Comparisons with the shipboard CTD casts were done for D0001, R0001, D0003, R0003, D0004, R0004, D0006, R0006, D0007, R0007, D0008, D0009, R0009. Chl-a recorded by the profiler was slightly higher at deployment compared to the CTD cast (with the exception of D0003), and substantially higher compared to the CTD cast at recovery. Further analysis using the shipboard bottle data should be conducted. This is outside the scope of this project.

By Lori Garzio, on 3/13/19

CP02PMCI-WFP01-04-FLORTK000

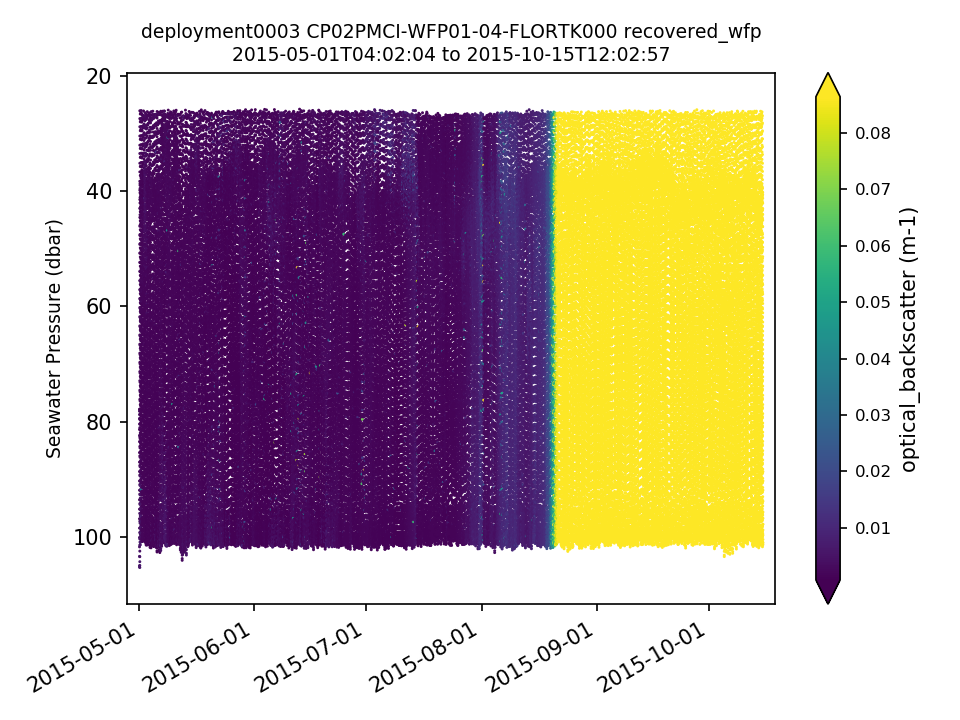

It looks like biofouling might be an issue for this instrument. Backscatter, CDOM, and chl-a values are unreasonable during the second half of almost every deployment.

By Lori Garzio, on 6/24/19

CP02PMCI-WFP01
12/15/15, 12:00 AM 5/20/16, 7:14 PM

Annotation ID 230: Deployment 4: WFP stopped profiling. Excluding from final data ranges.

By Lori Garzio, on 6/24/19

CP02PMCI-WFP01-04-FLORTK000
Deployment: 1
7/10/14, 12:00 AM 10/10/14, 10:38 AM

Suspect data for all FLORT variables - this should be investigated and annotated.

By Lori Garzio, on 6/24/19

CP02PMCI-WFP01-04-FLORTK000
Deployment: 2

According to annotation ID 400, recovered data are missing. These data should be ingested or the annotation should be updated to indicate why the recovered data aren't available.

By Lori Garzio, on 6/24/19

CP02PMCI-WFP01-04-FLORTK000
Deployment: 3
7/29/15, 12:00 AM 10/15/15, 12:03 PM

Suspect data for all FLORT variables - this should be investigated and annotated.

By Lori Garzio, on 6/24/19

CP02PMCI-WFP01-04-FLORTK000
Deployment: 6
8/20/16, 12:00 AM 10/2/16, 8:32 PM

Suspect data for all FLORT variables - this should be investigated and annotated.

By Lori Garzio, on 6/24/19

CP02PMCI-WFP01-04-FLORTK000
Deployment: 7
11/15/16, 12:00 AM 6/17/17, 12:12 PM

Suspect data for all FLORT variables - this should be investigated and annotated.

By Lori Garzio, on 6/24/19

CP02PMCI-WFP01-04-FLORTK000
Deployment: 8
8/15/17, 12:00 AM 11/7/17, 12:57 PM

Suspect data for all FLORT variables - this should be investigated and annotated.

By Lori Garzio, on 6/24/19

CP02PMCI-WFP01-04-FLORTK000
Deployment: 9
2/15/18, 12:00 AM 4/11/18, 1:46 PM

Suspect data for all FLORT variables.

By Lori Garzio, on 6/24/19

New Note

Metadata Start Date End Date Comment
CP02PMCI-WFP01-04-FLORTK000
Method: recovered_wfp
10/11/14, 2:11 PM 12/14/14, 7:00 PM

Missing.

Id: 400 By: leila
Flag: not_available Exclude: No

CP02PMCI-WFP01
12/15/15, 10:08 PM 1/29/16, 7:00 PM

The Wire-Following Profiler was intentionally converted into a fixed-depth instrument to prolong the battery endurance.

Id: 230 By: leila

CP02PMCI
5/20/16, 8:18 PM 5/30/16, 8:05 AM

Recovered data are not available because the Wire-Following Profiler motor and PAR cables were swapped and the data are thus unreliable.

Id: 228 By: leila

CP02PMCI
10/2/16, 1:30 PM 10/2/16, 2:30 PM

Telemetered data are sparse because telemetry schedule was irregular during this deployment.

Id: 232 By: leila

CP02PMCI-WFP01
2/7/17, 7:00 AM 6/16/17, 11:00 PM

Data transmission interrupted.

Id: 605 By: leila

CP02PMCI-WFP01
12/31/19, 7:00 PM 6/12/20, 12:01 PM

Deployment 13: Due to a clock rollover issue, all WFPs have ceased sampling on 1/1/2020. No WFP data are being collected after this date. A resolution is being researched by the vendor.

Id: 1881 By: cdobson
